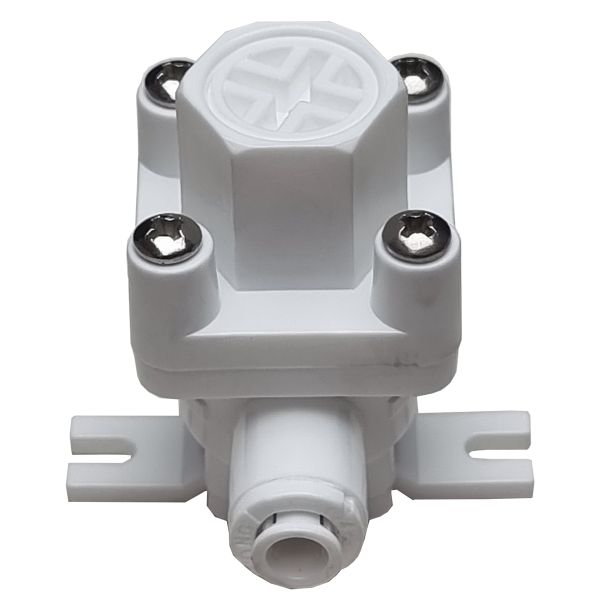

Pressure reducer for water purifier model P-TW

Introduction

In many cases, it has been seen that in some areas, the water pressure in the building’s plumbing is very high or the building has a pressure pump that, when the pump is turned on, at the beginning of operation, it causes a blow or kick or pressure shock, which sometimes may cause the connections and even the water purifier’s housing to break and cause water leakage.

In these cases, if no thought is given to reducing this pressure and shock, it may cause the parts or the water purifier’s housing to break, which causes water to flow into the house. Fortunately, there is a solution to this problem, and that is the use of a regulated pressure relief device.

This device controls the water pressure and prevents the pressure from rising above a certain level. With this device, you can easily get rid of high water pressure and severe shocks.

This device controls the incoming water pressure and does not allow the water pressure to exceed 40PSI.

Also, the pressure that can be tolerated for this part is 230PSI, which is suitable and will not easily break. Installing this part is very simple, and you only need to insert a 1/4 size pipe from both ends.

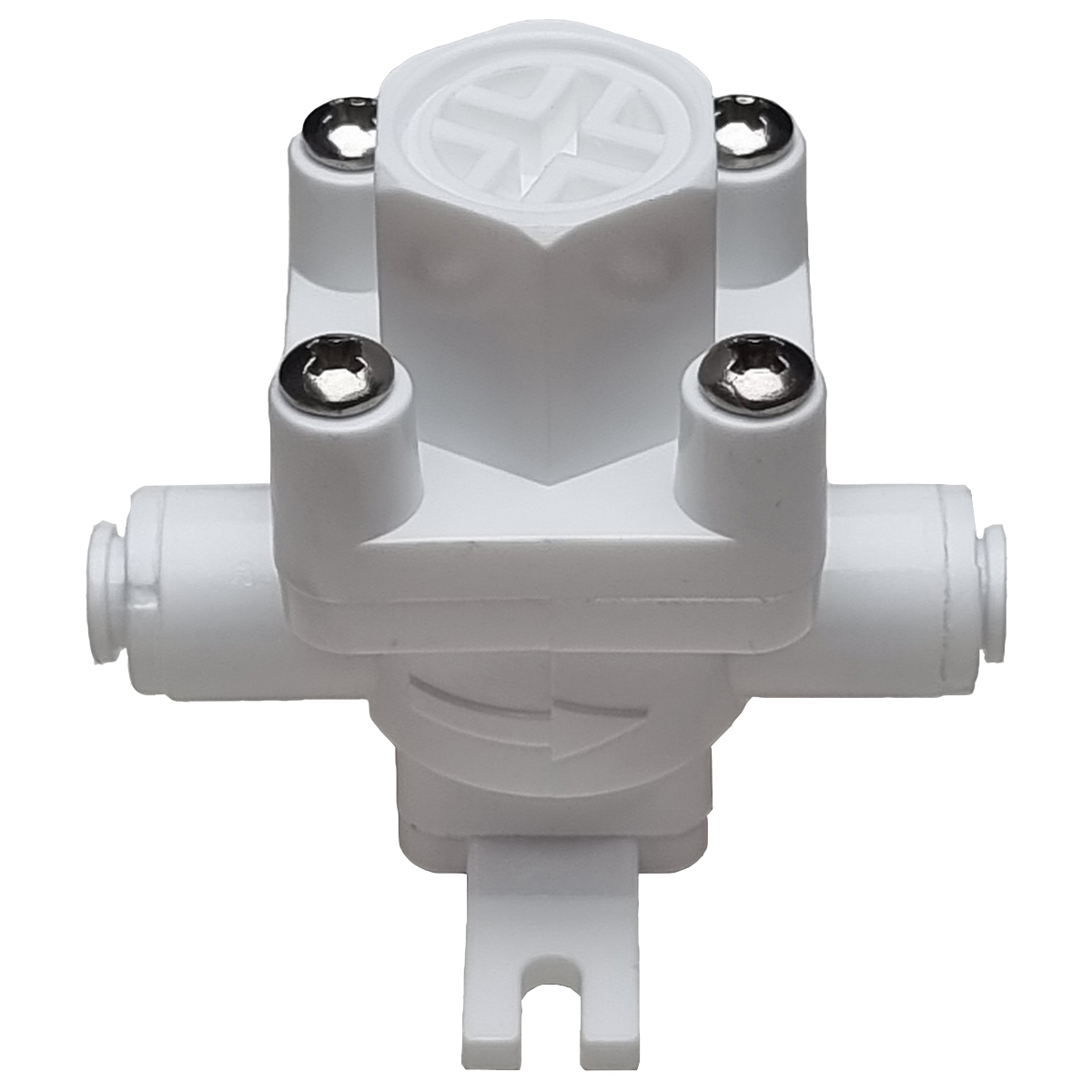

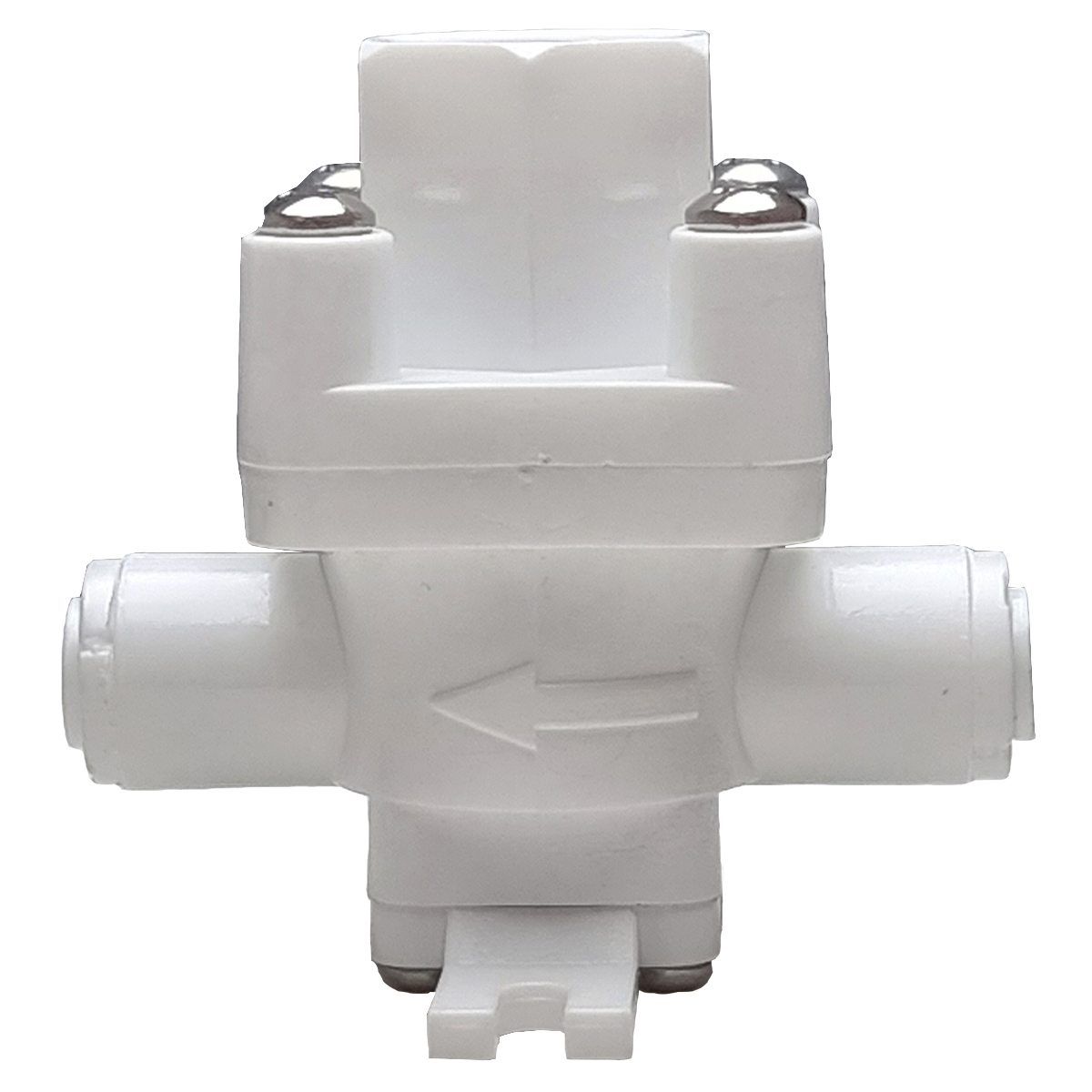

Note that when installing this part, pay attention to the direction of its inlet and outlet arrows. This part is placed in the path of the inlet pipe to the water purifier.

The water purifier pressure switch is strongly recommended for other devices connected to city water, such as side-by-side refrigerators, coffee and tea makers, etc., and for places where the inlet water pressure is high.

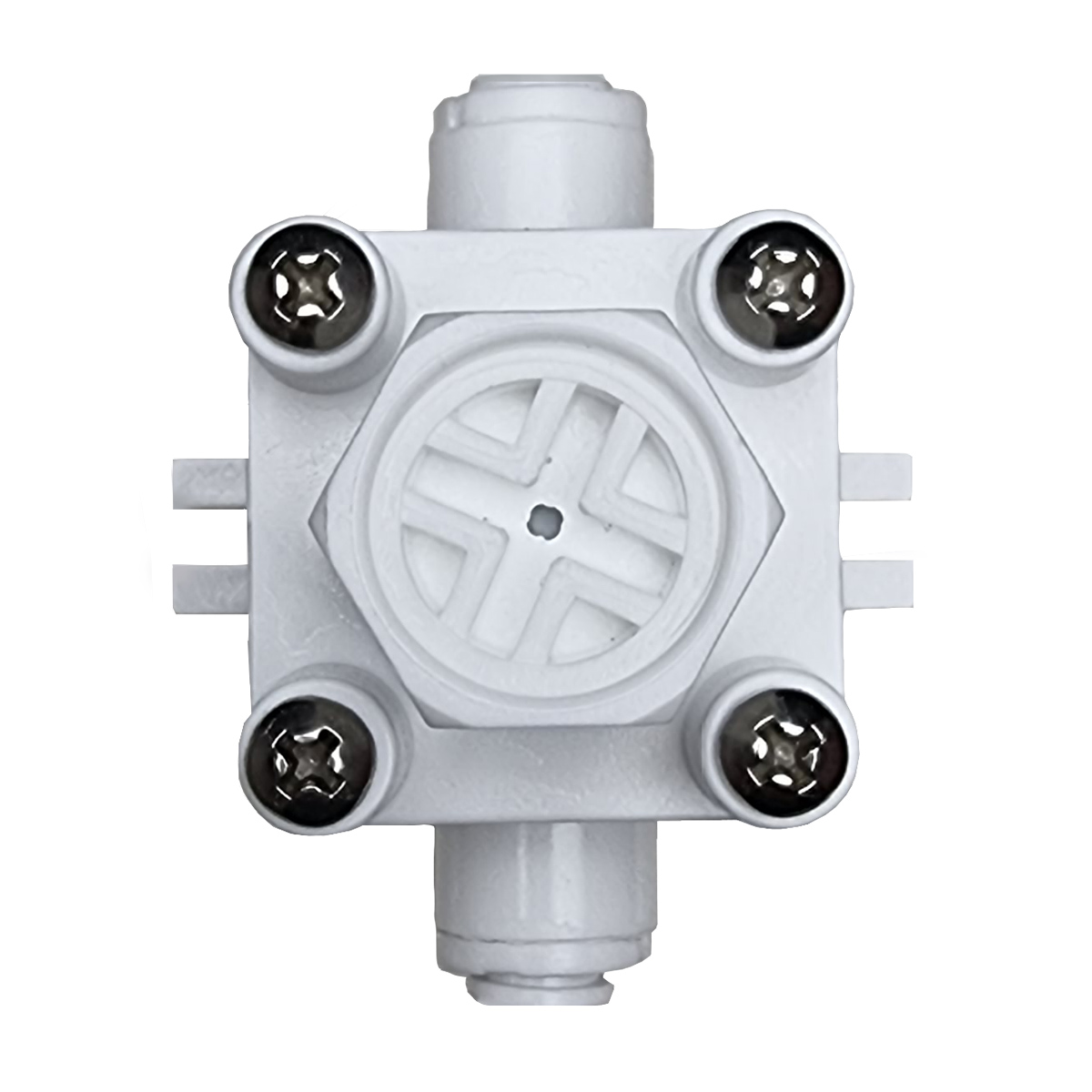

It should be noted that this pressure switch has an adjustable screw and can also control the water inlet pressure as needed.
